Product features

The main engine adopts a power unit composed of a Caterpillar diesel engine and an Allison gearbox, with reliable performance and low failure rate.

The winch is a double (single) drum winch, and the main brake is a belt (disc) brake. It is equipped with a water-cooled auxiliary brake, and the sand drum is optional. The turntable transmission and winch adopt a combined driving method, and the turntable is equipped with inertia brakes. The whole machine has reliable transmission and simple maintenance.

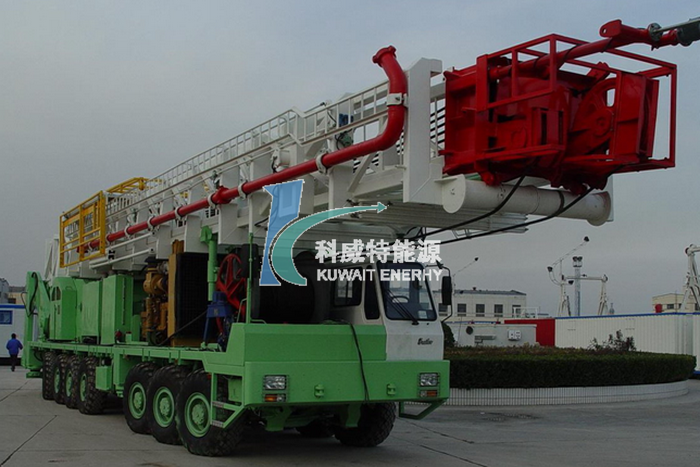

The drilling rig is equipped with two telescopic mast type derricks, which are lifted and extended using oil cylinders.

The drilling platform is a six column rotary lift type or an eight column vertical extension type, with a stable structure and convenient installation. The crane is used for lifting, and the turntable and chain box can be transported as a whole with the base when in low position. The transportation is convenient, and the chassis of the transport vehicle is produced by professional manufacturers, meeting the requirements of automobile announcements. It can adapt to complex road conditions in oil fields, has strong off-road capabilities, and long service life.

Centralized control of gas, electricity, and liquid systems, with imported components selected as the main components.
