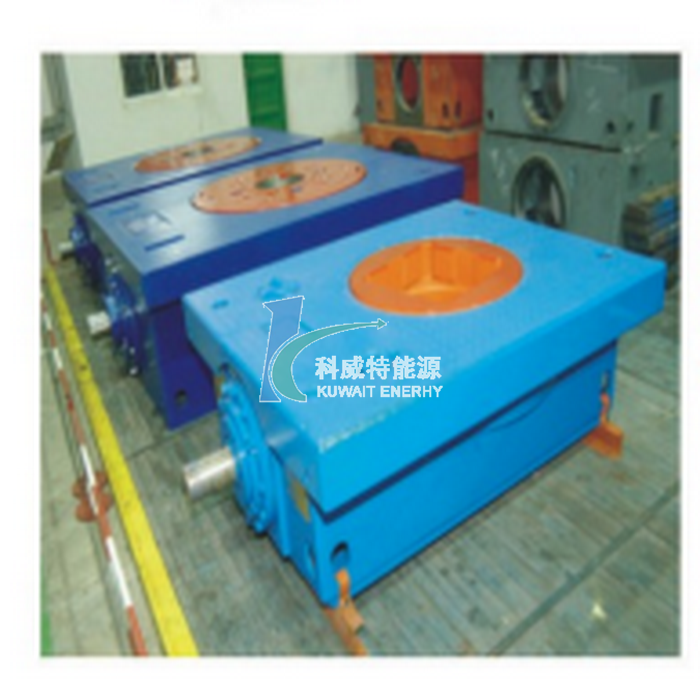

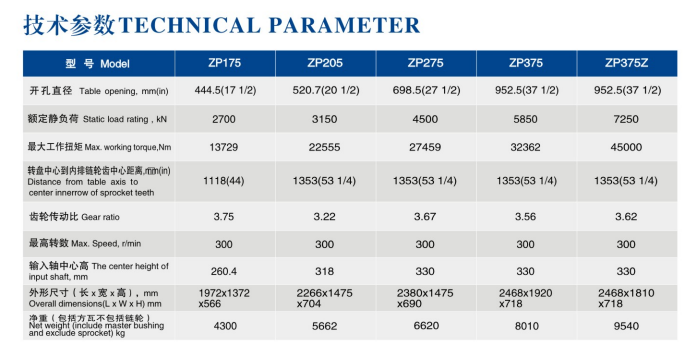

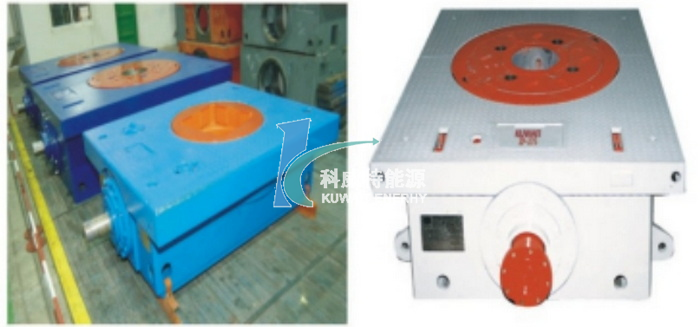

turntable

Structural characteristics

● Meet the requirements of industry standard SYT5531; The rotary table transmission adopts spiral bevel gears, which have strong load-bearing capacity, stable operation, and long service life;

The outer shell of the turntable is a cast welded structure, with good rigidity and high accuracy;

The gears and bearings are lubricated with splash lubrication, ensuring reliable lubrication;

The input shaft is a cylindrical structure, which is easy to maintain and replace.

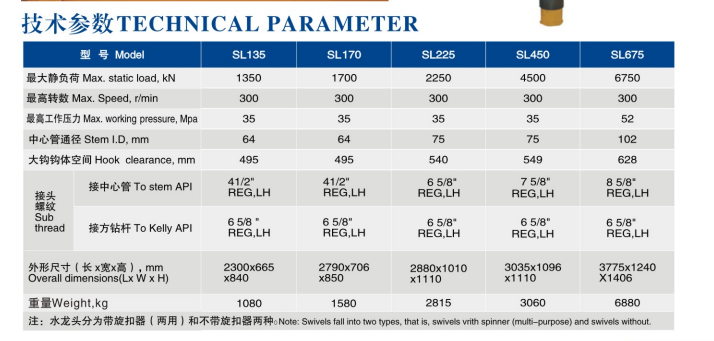

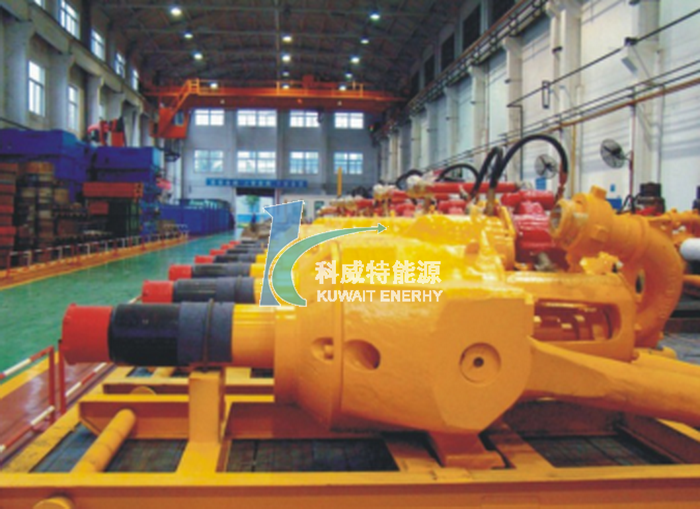

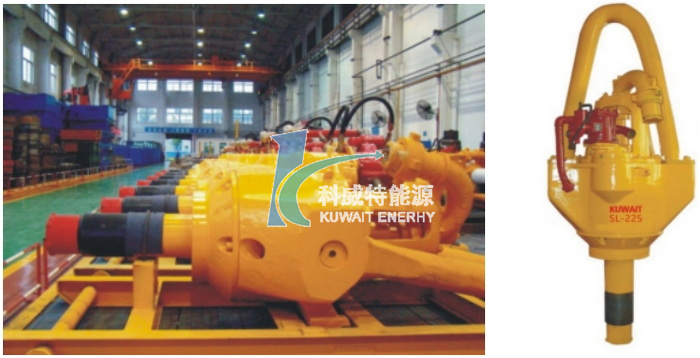

2. Faucet

The series faucets comply with API8A specifications and have the right to use the API logo:

● Meet the requirements of industry standard SY/T5530;

● Optional double male buckle alloy steel short joint;

The flushing pipe and packing device are a box type integrated structure, which is easy to replace;

Equipped with API4LP water hose connector

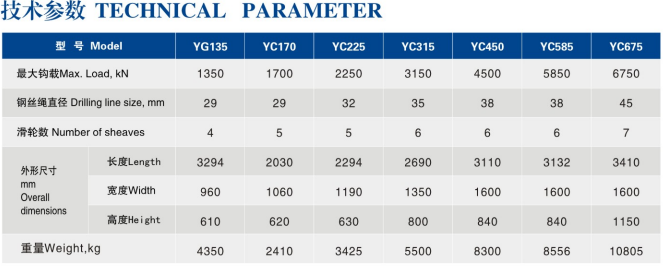

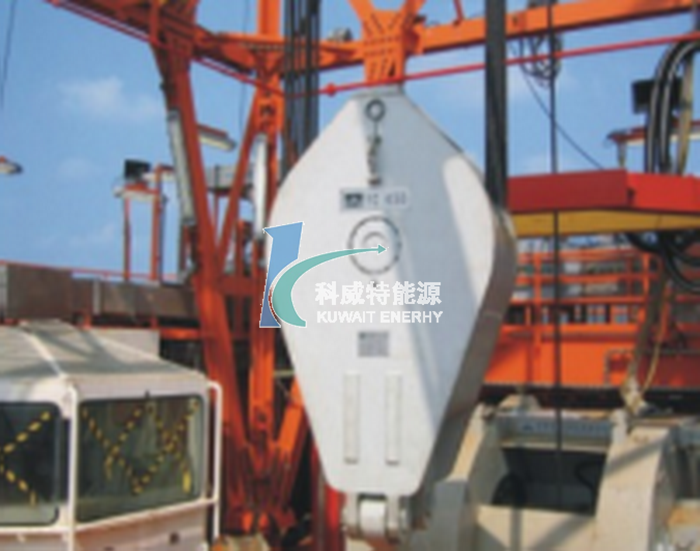

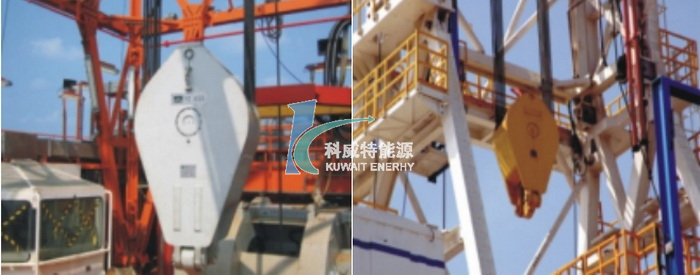

3. Touring car

Structural characteristics

The series of touring cars comply with API8A specifications and have the right to use the API logo;

● Meet the requirements of industry standard SY/T5527; The pulley groove has undergone quenching treatment, which is wear-resistant and has a long service life;

The pulleys and bearings can be interchanged with the pulleys and bearings of the matching overhead crane.

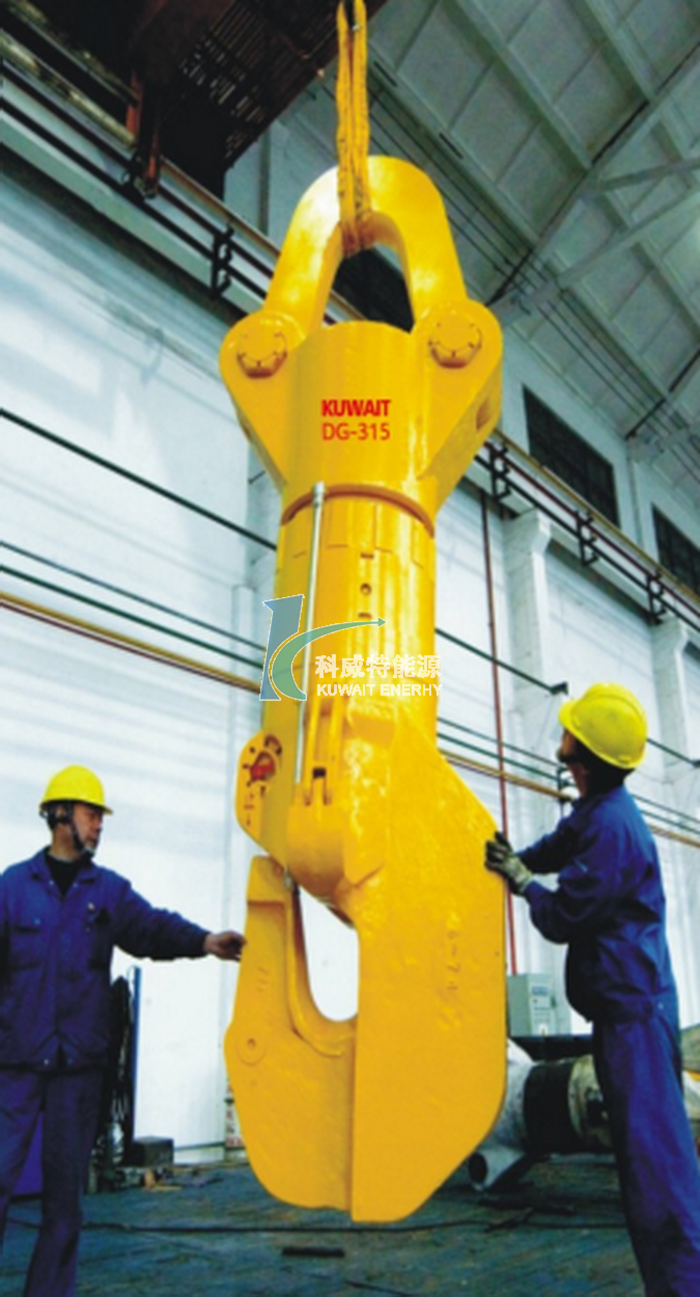

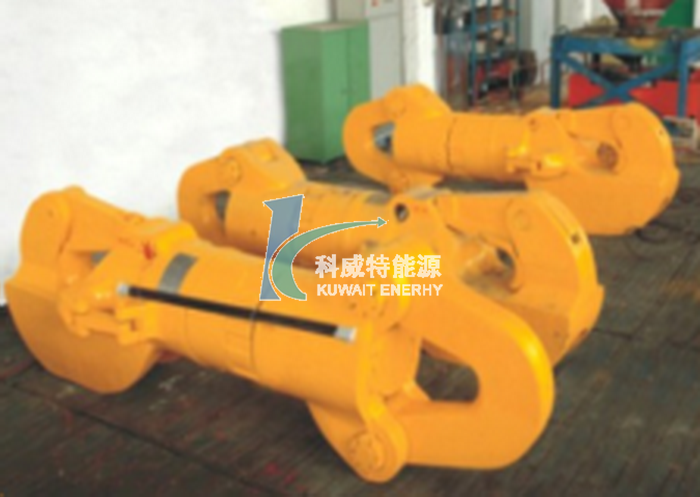

4. Hook

Structural characteristics

● The series of large hooks comply with the AP8A standard and have the right to use the API logo;

● Meet the requirements of industry standard SY/T5527; The special structure inside the cylinder has good buffering function;

The main hook has a dual safety device,

The main components of the hook are made of high-strength alloy steel and have undergone non-destructive testing.
