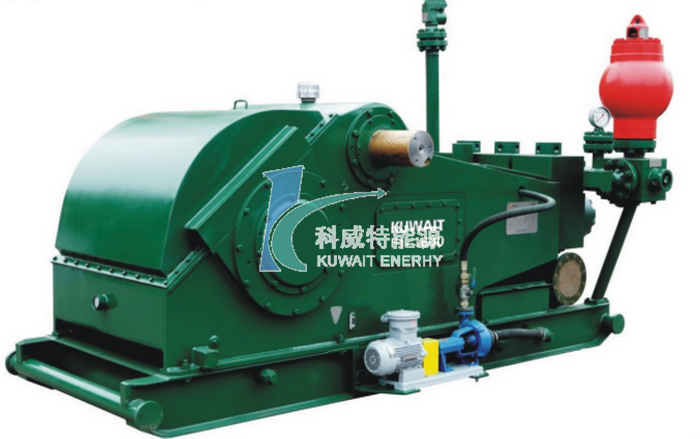

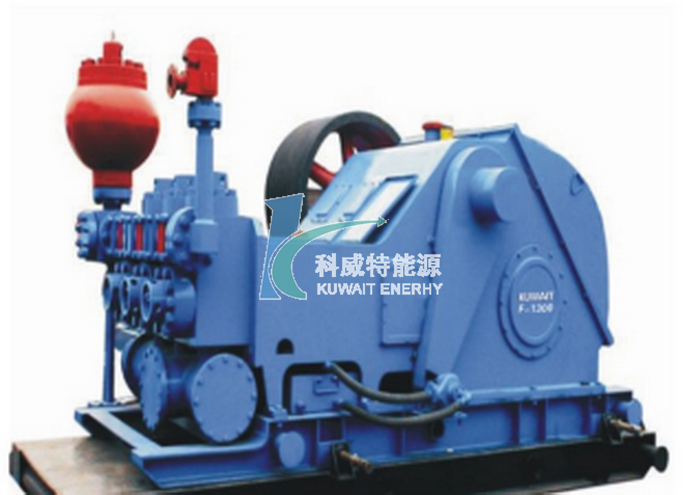

Drilling pump series
The F-500, F-800, and F-1000 pumps have a maximum pump pressure of 34.5MPa (5000psi), with small volume, light weight, and high reliability. They are ...
Product Introduction：
| The F-500, F-800, and F-1000 pumps have a maximum pump pressure of 34.5MPa (5000psi), with small volume, light weight, and high reliability. They are the preferred products for matching pumps in shallow and medium deep drilling rigs. The F-1600HL and F-2200HL pumps have a maximum pump pressure of 34.5MPa (5000psi) and a maximum displacement of 51.85L/S and 77.65L/S, respectively. They are the preferred products for drilling rigs such as deep wells, ultra deep wells, high displacement horizontal wells, high-pressure jet drilling, and offshore platforms. The F1 series lightweight pump is a newly designed product with basic performance parameters such as power, displacement, and pump pressure, as shown in 10:030? Under roughly equivalent conditions, the weight of pump F is 20-25% lighter than that of pump F of the same specification. At the same time, all hydraulic end components are forgings, greatly improving quality and reliability. This pump is more suitable for occasions such as offshore platform drilling rigs that require high volume and weight indicators for drilling pumps. The QDP-3000 drilling pump is currently the world's largest five cylinder drilling pump (group), with a maximum pressure of 51.7 MPa (7500psi) and a maximum displacement of 76.34 L/S; The displacement at the highest pump pressure and the pressure at the maximum displacement are as high as 55.08L/s and 27.0MPa, respectively, demonstrating outstanding operational capabilities. In the absence of an air bag, the displacement and pressure fluctuations of the five cylinder pump are only about one-third of those of the three cylinder pump, and the displacement and pressure fluctuations are smaller when equipped with an air bag. The pump unit adopts a modular and lever mounted design concept, with a reasonable overall structural layout, smooth operation, high transmission efficiency, and high reliability. The performance and characteristics of this pump are particularly suitable for supporting the permanent magnet motor direct drive pump (group) of offshore platform drilling rigs. It has a small volume, light weight, simple and reliable transmission link, high efficiency, and is a new energy-saving and environmentally friendly product. It is one of the important directions for the development of drilling pump products in the future.
|
