The company took inspiration from the servo control system of CNC machine tools and applied the concept of electric servo variable pitch to the control structure of testing machines. This equipment adopts an electric servo control system to avoid hydraulic oil leakage, occupies a smaller area, and has a lower maintenance rate. Suitable for mechanical properties of specimens with longer length and larger force values

Experiment. The main specifications include 100KN, 200KN, 300KN, 500KN, 1000KN, 2000KN, and 3000KN.

Applicable scope:

Suitable for mechanical testing of tools such as porcelain bottles, composite insulators, wires, steel wire ropes, gourds, double hooks, foot buckles, safety belts, etc; Mechanical and electrical joint tests can also be conducted.

Performance characteristics:

1. Variable distance structure: convenient for sample connection:

2. Control system: maintenance free, with a sense of electrical and server control;

3. Software system: software package under the new version of Chinese Windows platform; 4. Range mode: Automatically categorize coordinates based on force values;

5. Automatic storage: experimental parameters, test results, and force curve are automatically archived; 6. Automatic calibration: automatic zero and full adjustment, avoiding manual operation;

7. Continuous testing: After setting the test parameters, it can be tested continuously and has the function of loading multiple levels.

8. Wide testing range: can be equipped with multiple sensors, expanding the testing range;

9. Module control: Industrial control bus type hardware, flexible exchange of multiple test accessories, convenient for function expansion and maintenance;

10. Multiple protection: equipped with overload, overvoltage, overspeed, emergency stop and other protections:

11. Automatic recognition: Automatically record the breaking force value and release the force;

12. Dynamic display: Real time display of load, deformation, and selected test curves during the testing process; 13. Convenient zeroing: The system automatically zeros at the beginning of the test; 14. Multi functional: can be equipped with various specialized accessories;

15. Beautiful appearance: The exterior of the body adopts electrostatic spray molding, which is beautiful and generous.

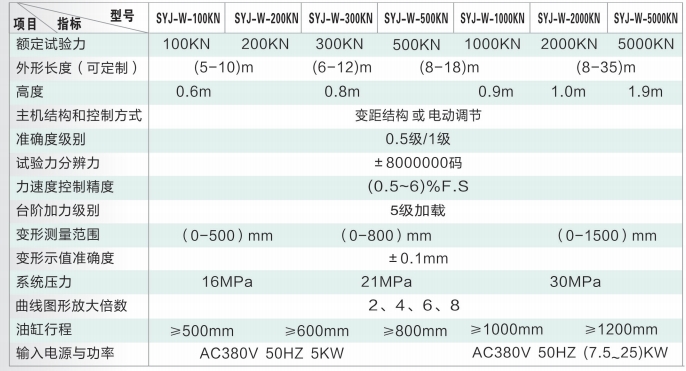

Technical specifications:
