This product is based on our company's years of experience in safety tool testing, combined with GB/T16491-2008 "Prevention of Live Working Tools, Devices and Equipment"

A mechanical performance testing machine for electrical safety tools has been developed according to the Sexual Testing Regulations. The product technology is leading, with high cost-effectiveness and easy operation.

Main specifications:

100kN, 150kN, 200kN, 300kN, 500kN, 1000kN 2000kN, 3000kN

Main use:

Below 300kN: Can be tested for buckles, seat belts, helmets, pedals, waist ropes, bamboo (wood) ladders, steel wire ropes, tighteners, etc. 500kN and above: In addition to the above purposes, it can also be used for strength testing of disc suspension porcelain bottles, glass insulators, and composite insulators.

Functional features:

Easy and fast to operate, click the mouse three times to complete the experiment;

The test force value, holding time, test name, inspection unit, workpiece name, etc. can be edited and set;

Automatically load, hold, and unload;

Automatic judgment of breakage, recording of breaking force value, and automatic compensation function for force value:

Real time display of force curve on the screen, with automatic report saving, printing, and query functions;

Smooth loading without overshoot, protecting the specimen;

Step shaped simulation pole, suitable for testing different sizes of foot buckles:

Windows new version interface tension machine specialized software;

The impact hammer and puncture hammer of the safety helmet test automatically release, and the test height and conclusion are automatically generated.

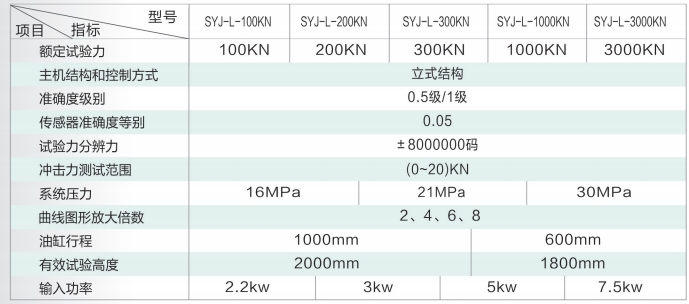

Technical specifications:
